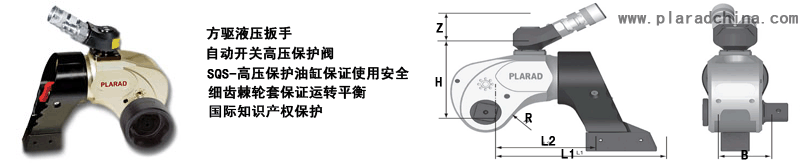

液压扳手 |
|
型号 |
方驱尺寸 |
扭矩范围(Nm) |
尺寸（mm） |
重量(kg) |
|
l2-l1 |
B |
H |
R |
Z |
| MX-EC 20 TS |
1"(3/4") |
210-2.100 |
100-160 |
50 |
93,0 |
24,0 |
44,0 |
2.9 |
| MX-EC 45 TS |
1" |
450-4.500 |
125-210 |
67 |
122,0 |
32,0 |
44,0 |
4.9 |
| MX-EC 75 TS |
1 1/2" |
750-7.500 |
136-253 |
80 |
139,0 |
37.5 |
44,0 |
7.3 |
| MX-EC 95 TS |
1 1/2" |
950-9.500 |
157-254 |
85 |
154,0 |
42,0 |
44,0 |
9.5 |
| MX-EC 120 TS |
1 1/2" |
1.200-12.000 |
175-275 |
90 |
163,0 |
43,0 |
44,0 |
10.5 |
| MX-EC 155 TS |
1 1/2" |
1.550-15.500 |
195-300 |
100 |
181,0 |
49,0 |
44,0 |
13.5 |
| MX-EC 200 TS |
2 1/2" |
2.000-20.500 |
210-325 |
112 |
210,0 |
55,0 |
44,0 |
20.5 |
| |
| MSX 250 TS |
2 1/2" |
25.00-25.000 |
185-290 |
118 |
229.5 |
57,5 |
78,0 |
29.5 |
| MSX 400 TS |
2 1/2" |
4.000-40.000 |
229-362 |
136 |
273.5 |
66,5 |
78,0 |
49.5 |
| MSX 650 TS |
3 1/2" |
6.500-65.000 |
260-415 |
155 |
323.5 |
78,0 |
78,0 |
77.7 |
| |
 |
|

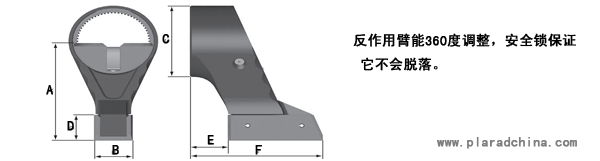

带安全装置的反作用力臂 |
|
型号 |
A |
B |
C |
D |
E |
F |
编号 |
重量(kg) |
| MX-EC 20 TS |
100 |
36 |
70 |
28 |
30 |
90 |
B50-020-1-00420 |
0,7 |
| MX-EC 45 TS |
111 |
36 |
83 |
35 |
35 |
123 |
B50-045-1-05601 |
1,1 |
| MX-EC 75 TS |
137 |
40 |
95 |
35 |
37 |
155 |
B50-075-1-04711 |
1,8 |
| MX-EC 95 TS |
160 |
40 |
107 |
35 |
60 |
158 |
B50-095-1-00500 |
1,9 |
| MX-EC 120 TS |
160 |
46 |
112 |
35 |
62 |
163 |
B50-120-1-00115 |
2,6 |
| MX-EC 155 TS |
169 |
46 |
128 |
41 |
74 |
174 |
B50-155-1-00140 |
3,2 |
| MX-EC 200 TS |
200 |
61 |
146 |
53 |
85 |
157 |
B50-200-1-00240 |
5,6 |
| |
| MSX 250 TS |
223 |
66 |
190 |
53 |
46 |
157 |
B50-250-1-00110 |
6,4 |
| MSX 400 TS |
248 |
95 |
225 |
55 |
64 |
197 |
B50-400-1-00110 |
10,8 |
| MSX 650 TS |
280 |
105 |
254 |
60 |
68 |
223 |
B50-650-1-00110 |
18,0 |
 |
|

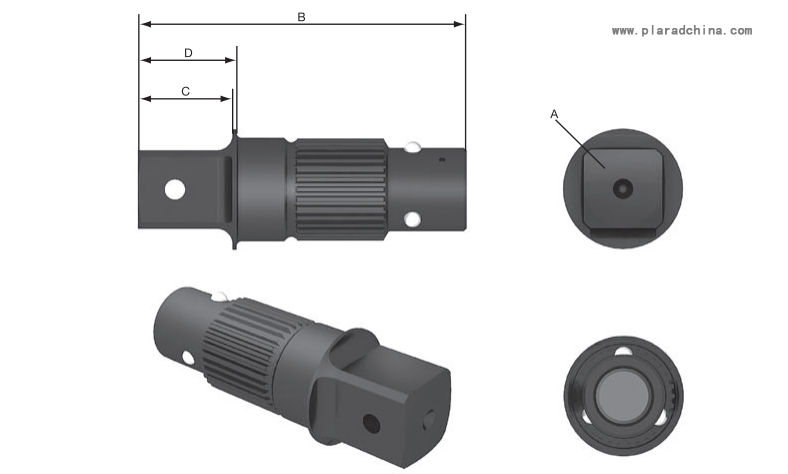

四方驱动轴 |
|
型号 |
|
A |
B |
C |
D |
Mt max |
编号 |
重量(kg) |
| MX-EC 20 TS |
AP 075 |
3/4" |
87 |
23 |
28 |
1300N.m |
B93-042-1-00002 |
0.35 |
| AP 100 |
1" |
91 |
27 |
32 |
2100N.m |
B93-042-1-00001 |
0.45 |
| MX-EC 45 TS |
AP 100 |
1" |
106.5 |
27 |
32 |
4500N.m |
B93-032-1-00001 |
0.65 |
| AP 150 |
1 1/2" |
119.5 |
40 |
45 |
4500N.m |
B93-032-1-00002 |
0.95 |
| MX-EC 75 TS |
AP 150 |
1 1/2" |
132.5 |
40 |
45 |
7500N.m |
B93-038-1-00005 |
1.25 |
| MX-EC 95 TS |
AP 150 |
1 1/2" |
136.5 |
41 |
44 |
9500N.m |
B93-041-1-00500 |
1.23 |
| MX-EC 120 TS |
AP 150 |
1 1/2" |
141.5 |
40 |
45 |
12000N.m |
B93-046-1-00081 |
1.75 |
| MX-EC 155 TS |
AP 150 |
1 1/2" |
156.5 |
40 |
45 |
15500N.m |
B93-048-1-00011 |
2.1 |
| AP 250 |
2 1/2" |
171.5 |
55 |
60 |
15500N.m |
B93-048-1-00019 |
3.3 |
| MX-EC 200 TS |
AP 200 |
2 1/2" |
189.5 |
55 |
60 |
20000N.m |
B93-058-1-00046 |
4.75 |
| |
| MSX 250 TS |
AP 250 |
2 1/2" |
189.5 |
55 |
60 |
25000N.m |
B93-058-1-00001 |
4.75 |
| MSX 400 TS |
AP 250 |
2 1/2" |
208 |
55 |
60 |
40000N.m |
B93-068-1-00001 |
6.2 |
| MSX 693
TS |
AP 250 |
2 1/2" |
232 |
55 |
60 |
50000N.m |
F93-080-2-06405 |
8.7 |
| AP 350 |
3 1/2" |
262 |
85 |
90 |
65000N.m |
F93-080-2-08905 |
12.0 |
|
|
